esphome:
name: 4pzme004
friendly_name: 4pzme004
esp8266:
board: esp01_1m
# Enable logging
logger:
baud_rate: 0

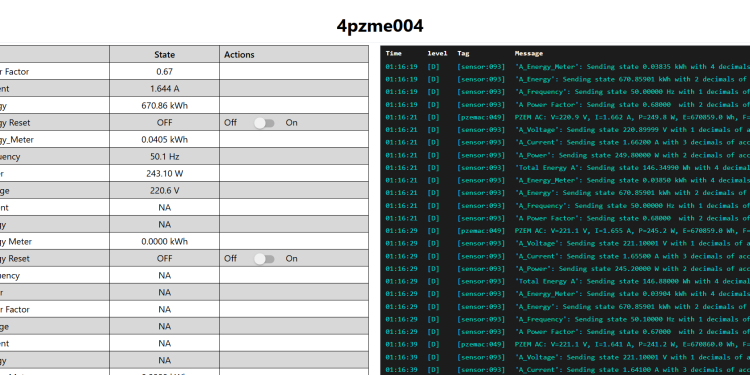

web_server:
port: 80
# Enable Home Assistant API
api:
ota:
- platform: esphome
password: 12345678
wifi:
ssid: "SS"
password: "12345678"
use_address: 192.168.1.11
# Optional manual IP
manual_ip:
static_ip: 192.168.1.11
gateway: 192.168.1.1
subnet: 255.255.255.0
dns1: 8.8.8.8
dns2: 1.1.1.1
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "EspZEM"
password: "12345678"
captive_portal:
button:
- platform: restart
name: "Restart device"
# Example configuration entry
modbus:
- id: mod1
uart_id: ua1
- id: mod2
uart_id: ua2
- id: mod3
uart_id: ua3
- id: mod4
uart_id: ua4
interval:
- interval: 30s
then:
- lambda: 'id(pzemac1).update();'
- delay: 50ms
- lambda: 'id(pzemac2).update();'
- delay: 50ms
- lambda: 'id(pzemac3).update();'
- delay: 50ms
- lambda: 'id(pzemac4).update();'
uart:
- id: ua1
tx_pin: RX
rx_pin: TX
baud_rate: 9600
#stop_bits: 1
- id: ua2
tx_pin: GPIO0
rx_pin: GPIO2
baud_rate: 9600
#stop_bits: 1
- id: ua3
tx_pin: GPIO14
rx_pin: GPIO12
baud_rate: 9600
#stop_bits: 1
- id: ua4
tx_pin: GPIO13
rx_pin: GPIO15
baud_rate: 9600
#stop_bits: 1
sensor:
- platform: wifi_signal
name: "Wi-Fi Signal"
update_interval: 60s
# AC1 -A
- platform: pzemac
id: pzemac1
current:
name: "A_Current"
voltage:
name: "A_Voltage"
energy:
name: "A_Energy"
id: A_energy
filters:
- multiply: 0.001
accuracy_decimals: 2
unit_of_measurement: kWh
power:
name: "A_Power"
id: power_monitor_A
frequency:
name: "A_Frequency"
power_factor:
name: "A Power Factor"
update_interval: 10s
modbus_id: mod1
- platform: total_daily_energy
name: "Total Energy A"
power_id: power_monitor_A
# AC2 -B
- platform: pzemac
id: pzemac2
current:
name: "B_Current"
voltage:
name: "B_Voltage"
energy:
name: "B_Energy"
id: B_energy
filters:
- multiply: 0.001
accuracy_decimals: 2
unit_of_measurement: kWh
power:
name: "B_Power"
id: power_monitor_B
frequency:
name: "B_Frequency"
power_factor:
name: "B_Power Factor"
update_interval: 10s
modbus_id: mod2
- platform: total_daily_energy
name: "Total Energy B"
power_id: power_monitor_B
# AC3-C
- platform: pzemac
id: pzemac3
current:
name: "C_Current"
voltage:
name: "C_Voltage"
energy:
name: "C_Energy"
id: C_energy
filters:
- multiply: 0.001
accuracy_decimals: 2
unit_of_measurement: kWh
power:
name: "C_Power"
id: power_monitor_C
frequency:
name: "C_Frequency"
power_factor:
name: "C_Power Factor"
update_interval: 10s
modbus_id: mod3
- platform: total_daily_energy
name: "Total Energy C"
power_id: power_monitor_C
# AC4 -D
- platform: pzemac
id: pzemac4
current:
name: "D_Current"
voltage:
name: "D_Voltage"
energy:
name: "D_Energy"
id: D_energy
filters:
- multiply: 0.001
accuracy_decimals: 2
unit_of_measurement: kWh
power:
name: "D_Power"
id: power_monitor_D
frequency:
name: "D_Frequency"
power_factor:
name: "D Power Factor"
update_interval: 10s
modbus_id: mod4
- platform: total_daily_energy
name: "Total Energy D"
power_id: power_monitor_D
# TIEU THU
- platform: integration
name: "A_Energy_Meter"
sensor: power_monitor_A
time_unit: h
filters:
# Multiplication factor from W to kW is 0.001
- lambda: return x * (0.001);
unit_of_measurement: kWh
icon: mdi:counter
restore: true
- platform: integration
name: "B_Energy Meter"
sensor: power_monitor_B
time_unit: h
filters:
# Multiplication factor from W to kW is 0.001
- lambda: return x * (0.001);
unit_of_measurement: kWh
icon: mdi:counter
restore: true
- platform: integration
name: "C_Energy Meter"
sensor: power_monitor_C
time_unit: h
filters:
# Multiplication factor from W to kW is 0.001
- lambda: return x * (0.001);
unit_of_measurement: kWh
icon: mdi:counter
restore: true
- platform: integration
name: "D_Energy Meter"
sensor: power_monitor_D
time_unit: h
filters:
# Multiplication factor from W to kW is 0.001
- lambda: return x * (0.001);
unit_of_measurement: kWh
icon: mdi:counter
restore: true
switch:
- platform: uart
uart_id: ua1
name: "A_Energy Reset"
data: [0x01, 0x42, 0x80, 0x11]
- platform: uart
uart_id: ua2
name: "B_Energy Reset"
data: [0x01, 0x42, 0x80, 0x11]
- platform: uart
uart_id: ua3
name: "C_Energy Reset"
data: [0x01, 0x42, 0x80, 0x11]
- platform: uart
uart_id: ua4
name: "D_Energy Reset"
data: [0x01, 0x42, 0x80, 0x11]
time:
- platform: sntp
id: sntp_time
timezone: Asia/Ho_Chi_Minh
binary_sensor:
- platform: status
name: "Connection status"
